Roads, bridges, water facilities, dams and urban developments require many different construction methods. Bentonite is relevant to some of these projects because it can form a workable slurry that helps support an excavation or contributes to a designed seepage-control system.
Its value, however, depends on the specific construction process. Civil engineering bentonite is not one universal grade, and a material suitable for a drilled foundation may not be the right choice for a cutoff wall or a particular drilling operation.
This article outlines where bentonite is used in civil engineering, why those uses need different material properties, and how contractors and procurement teams can approach selection for infrastructure projects.
Where Bentonite Is Used in Civil Engineering
Bentonite appears in several different civil engineering methods. The common factor is a controlled clay-water system, but the performance requirements are not the same from one method to the next.
Drilled foundations and deep excavations

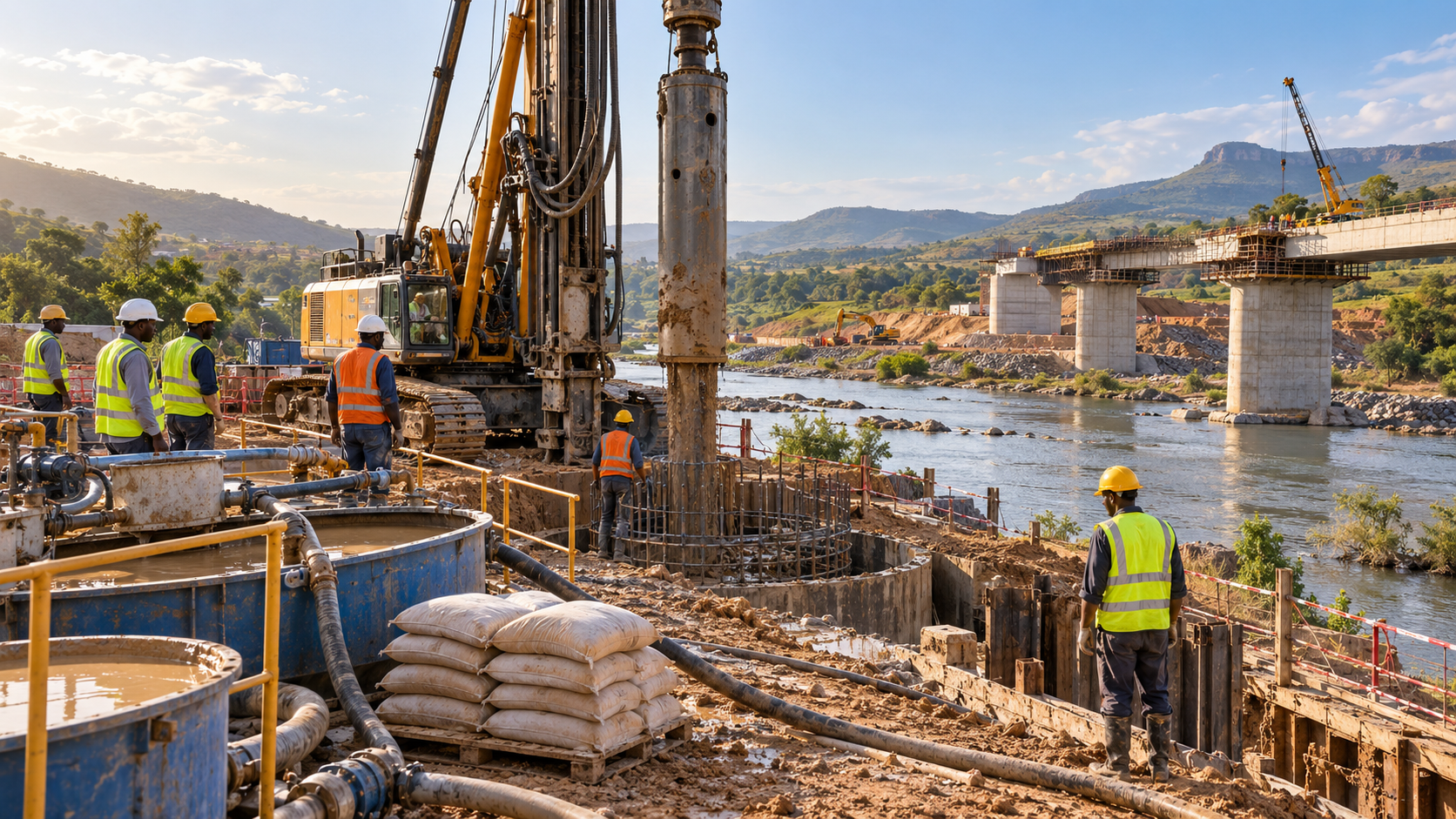

For drilled shafts or bored piles constructed below groundwater level or in unstable ground, a properly managed support fluid can help maintain the excavation until concrete is placed. Bentonite slurry is one possible support fluid. Its preparation and condition during construction matter as much as the properties of the dry powder.
For bridge and building foundations, contractors need to consider slurry density, viscosity, sand content and cleanliness before concreting. The engineer's project specification and site testing determine the acceptable values.
Cutoff walls and seepage-control works
Bentonite can be used in slurry-supported trenches and in specified soil-bentonite or cement-bentonite systems. These systems may form part of seepage-control works for dams, reservoirs and other water-retaining structures.
The dry bentonite alone does not guarantee an impermeable wall. Performance depends on the wall design, backfill mixture, construction quality, ground conditions and connection to the surrounding seepage-control measures. Hydraulic conductivity and compatibility should be assessed on the proposed system, rather than assumed from a bentonite datasheet.
Utility and pipeline crossings
Some trenchless or directional drilling operations use bentonite-based fluids to help transport cuttings and manage the bore. The suitable fluid depends on the drilling method, formation, water chemistry and equipment. A contractor should therefore describe the actual operation before a supplier recommends a grade.
| Construction method | Main role of bentonite | Typical focus during evaluation |
|---|---|---|
| Drilled shaft or bored pile | Support slurry that stabilises the excavation until concrete is placed | Density, viscosity, sand content and cleanliness before concreting |
| Cutoff trench and seepage control | Component of a soil-bentonite or cement-bentonite barrier system | Backfill mix design, hydraulic conductivity and compatibility with the ground |
| Trenchless and directional drilling | Drilling fluid for cuttings transport and bore management | Formation type, water chemistry and the specific drilling method |
Why This Matters for Projects in African Countries
The practical significance is reliable execution of a defined construction method. Where ground conditions call for a support slurry or a designed cutoff system, an appropriate bentonite can help the contractor manage excavation stability and fluid performance.
There is no single set of "African ground conditions". A project may encounter different soils, groundwater chemistry, water supply, temperatures and site logistics even within the same country. Contractors and procurement teams benefit from selecting material against the conditions at their own site, then confirming the result through laboratory and field trials.
Supply planning matters as well. A project should confirm the required quantity, packaging, delivery schedule and port or inland destination early enough to allow testing before full-scale construction. A low purchase price is of limited value if the material cannot meet the specified slurry performance consistently.
The useful question is not whether a material is simply labelled "civil engineering grade". It is whether it will meet the specified performance when it is prepared with the project's water and used in the project's construction method.
What to Request from a Bentonite Supplier
A useful technical enquiry describes the project rather than only the material. The following information helps a supplier propose a candidate grade and helps the contractor compare test results on the same basis:
- The construction method: drilled shaft, diaphragm wall, cutoff trench, directional drilling or another application.
- Ground and water conditions: available geotechnical information and the water that will be used to prepare the slurry.
- The project specification: required test methods and acceptance criteria for the powder, the prepared slurry or the completed structure.
- Preparation conditions: mixing equipment, dosage, hydration time and any additives.
- Trial requirements: sample quantity, planned laboratory tests and any site trial.
- Supply requirements: expected quantity, packaging, delivery schedule and destination.
Freshly mixed and working slurry may require different checks during construction. Suitability should be confirmed by the project engineer, and the acceptance criteria should come from the specification rather than from a general rule of thumb.
A Project-Based Approach to Selection
The most useful question is not simply, "Is this bentonite civil engineering grade?" It is: "Will this bentonite meet the specified performance when prepared with our water and used in our construction method?"
At Hermano New Materials, we can discuss civil engineering bentonite selection, including civil engineering sodium bentonite, using the customer's application, required test method and trial results. For drilling-based works, the wider bentonite for drilling fluids range may also be relevant. A material suitable for one method is not automatically suitable for another.
For an initial evaluation, share the project type, technical specification, water conditions, expected quantity and destination. We can then identify a suitable material for testing before commercial supply is finalised. You are welcome to contact Hermano to discuss your project.
Frequently Asked Questions
What is civil engineering bentonite used for?
In civil engineering it is used where a controlled clay-water system or a designed seepage-control layer is required. Common examples include support slurry for drilled shafts and diaphragm walls, slurry-supported cutoff trenches, soil-bentonite and cement-bentonite systems, and drilling fluids for some trenchless or directional crossings.
Is civil engineering bentonite a single standard grade?
No. Civil engineering bentonite is a use description rather than one universal specification. A material suitable for a drilled foundation may not be the right choice for a cutoff wall or a particular drilling operation, so the grade should be matched to the construction method and the project specification.
What properties matter for a bentonite support slurry?
For a support slurry, contractors typically monitor density, viscosity, sand content, filter-cake behaviour and overall cleanliness before concreting. The preparation method and the condition of the slurry during construction can matter as much as the properties of the dry powder.
Can bentonite alone guarantee an impermeable cutoff wall?
No. The dry bentonite does not by itself guarantee an impermeable wall. Performance depends on the wall design, backfill mixture, construction quality, ground conditions and the connection to the surrounding seepage-control measures. Hydraulic conductivity should be assessed on the proposed system rather than assumed from a datasheet.
Why can one grade not be recommended for every project in Africa?
There is no single set of African ground conditions. A project may encounter different soils, groundwater chemistry, water supply, temperatures and site logistics even within one country. Material should be selected against the conditions at the actual site and confirmed through laboratory and field trials.
What should a contractor confirm before ordering bentonite?
Confirm the construction method, available geotechnical and water information, the project specification and acceptance criteria, the mixing equipment and hydration time, the required dosage, and any trial requirements. Supply planning should also cover quantity, packaging, delivery schedule and port or inland destination.
How is bentonite slurry checked during construction?
Freshly mixed and working slurry may require different checks. Typical checks include density, viscosity, sand content, pH and cleanliness, with limits set by the project specification and site testing. The results should be compared against the acceptance criteria defined by the project engineer.
Can Hermano provide samples for a civil engineering project?
Evaluation samples can be discussed for a suitable project. A useful enquiry includes the project type, technical specification, water conditions, expected quantity and destination, so a candidate material can be proposed for testing before commercial supply is finalized.
